Architecture overview

DataFoundry uses a local-first workbench architecture. Web and TUI are user entry points; the backend unifies Agent Runtime, configuration management, data source access, knowledge retrieval, files, and artifact management.

High-level structure

Web workbench / TUI / other clients
  -> CopilotKit / AG-UI agent run
  -> REST configuration and resource API
  -> Agent Runtime
  -> Data Gateway / Knowledge / MCP / Skill / Files / Artifacts
  -> Metadata and audit storage

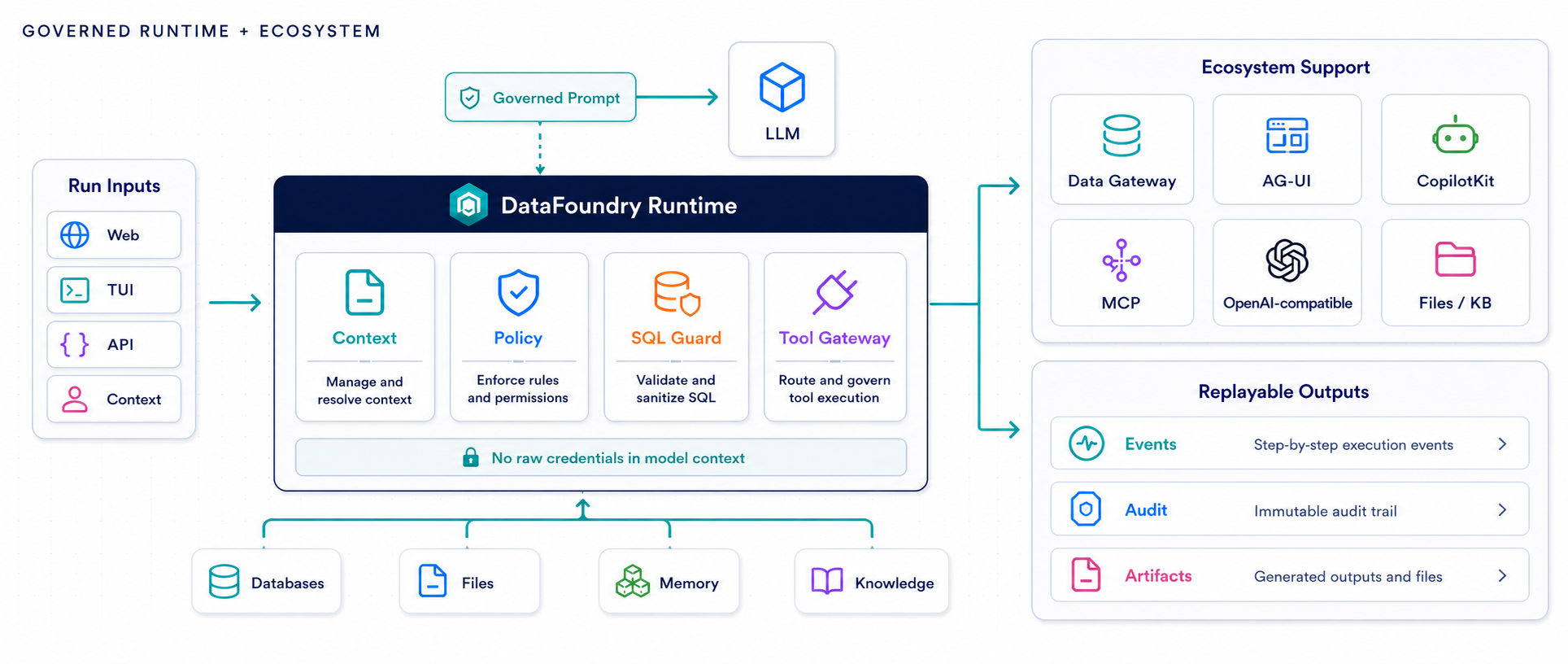

A curated architecture diagram is available in the repository home runtime flow image: docs/assets/readme/runtime-flow.png.

Main modules

Module	Responsibility
apps/web	Web data task workbench: graphical conversation, resource management, trace, and outputs.
apps/tui	Terminal UI: CLI conversation, data source and Skill selection, stats, and outputs.
apps/api	Backend HTTP service: /api/copilotkit and /api/v1/*.
Agent Runtime	Creates DataFoundry, manages tools, run context, and AG-UI events.
Data Gateway	Data sources, schema checks, preview, and read-only SQL execution.
Knowledge	Knowledge base documents, chunking, retrieval, and citation boundaries.
MCP	External tool services with allowlist and timeout policy.
Skills	Parse, store, select, and materialize Skill packages in the run workspace.
Files	Reusable file assets and in-run file references.
Artifacts	Agent-generated tables, charts, reports, and downloadable files.
Metadata	Users, workspace, session, run, events, resource configuration, secret references, and audit records.

Two northbound interfaces

The backend exposes two interface types to clients:

Interface	Path	Description
Agent run	/api/copilotkit	Start one agent analysis run; returns AG-UI event stream.
REST configuration API	/api/v1/*	Manage workspace resources, files, tasks, outputs, and configuration.

Web and TUI do not read backend internal SQLite, Data Gateway implementation classes, or Knowledge implementation classes directly. They interact only through HTTP.

Data analysis run flow

User asks a question
  -> Client sends AG-UI RunAgentInput
  -> Backend parses threadId, runId, messages, and run_config
  -> Merge workspace defaults, per-run overrides, and server policy
  -> Agent inspects schema
  -> Agent runs read-only SQL or calls other controlled tools
  -> Backend writes run events, SQL audit, and artifacts
  -> Client shows text, steps, trace, and outputs

Key points:

• threadId is the session; runId is a single run.
• run_config selects data sources, models, knowledge bases, MCP, Skills, and files for this run.
• The backend rebuilds authoritative server conversation history; clients do not resend full history on every run.
• The same AG-UI event stream is returned to the client and persisted for replay and audit.

Data access boundary

Data Gateway sits between the agent and real data sources. It handles:

• Data source registration and connection tests.
• Schema introspection.
• Preview and read-only SQL execution.
• SQL guard, limits, timeouts, allowlists, and field masking.
• SQL audit and result artifact creation.

Clients do not receive database credentials; the agent cannot bypass Data Gateway to access databases directly.

Configuration and credentials

Workspace configuration uses /api/v1/* REST APIs. Resource credentials are submitted only on create or update; the backend stores secret references and read APIs do not return plaintext.

Effective configuration for one run combines three layers:

workspace defaults
  + per-run overrides
  + server policy
  = effective run config

This keeps left-panel workspace configuration, per-conversation selection, and backend security policy separate.

Identity scope

Local development uses dev tokens and the default workspace. Web v1 keeps workspace switching out of the UI and scopes browser state by user. REST configuration requests and CopilotKit AG-UI runs must use the same identity headers.

Password mode adds cookie-based sessions, CSRF checks for unsafe methods, account registration, login, password reset, and session revocation under /api/v1/auth/*.

Files, knowledge bases, and outputs

Files can be stored as reusable FileAssetRef or enter the session workspace as chat attachments. During agent runs, controlled workspace tools read files.

Knowledge bases are managed by backend services for documents, chunking, and retrieval. The agent sees only policy-controlled retrieval summaries and citations.

Artifacts are managed by the Artifact service—common types include tables, charts, SQL, reports, and files. Web suits preview, download, and export; TUI suits command-line viewing.

Local development vs production

Current docs cover the local-first version and the built-in password-auth path. Production deployment typically also needs:

• Secret management such as KMS or Vault.
• Deployment, monitoring, and audit policies.
• Real-environment E2E validation against external databases.
• RBAC, organization policies, and multi-workspace UI if your deployment needs more than one personal workspace.

These do not block the local demo path but should be evaluated before external delivery.
